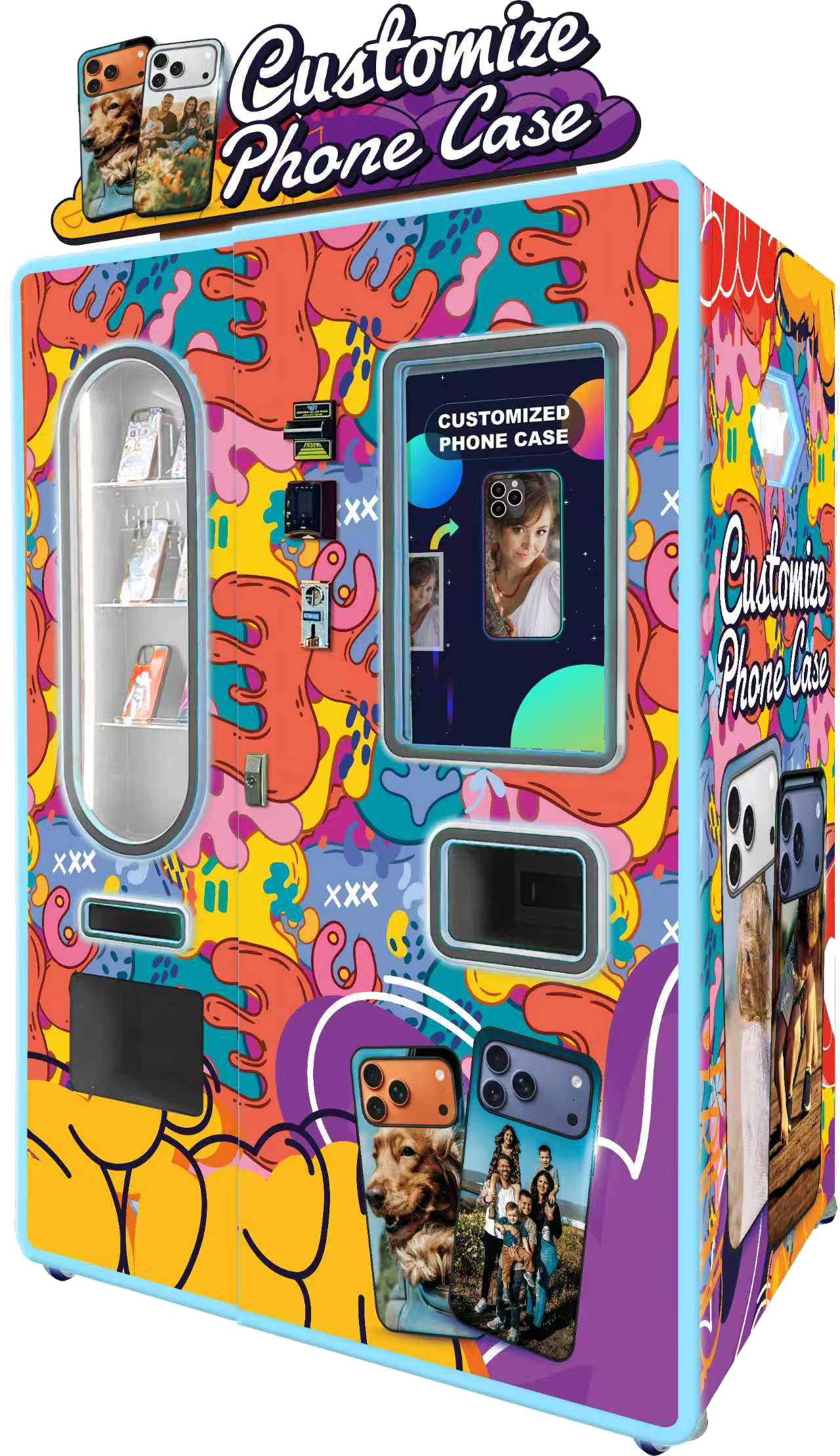

WM880 Phone Case Vending Machine
Industrial-grade UV printing, 90-second delivery, 1,025-case capacity — built for high-traffic retail.
WHY WM880
The WM880 turns a wall in any mall, airport or convenience store into a self-running custom phone-case business. A customer walks up, designs a case in seconds, pays, and walks away with a freshly UV-printed case in under two minutes — no staff, no inventory headaches, no guesswork.
WM880 in action — design, pay, and walk away with a printed case in under two minutes.
Technical Specifications
| Model | WM880 |
| Dimensions (L×W×H) | 1280 × 870 × 2250 mm |
| Weight | ≤350 kg |
| Voltage | 110–230 VAC |
| Standby / Operating Power | ≤400 W / ≤500 W |
| Print Technology | Industrial-grade UV flatbed direct printing (Epson i1600 / F1080 / I3200) |
| Resolution | 1200 × 1200 dpi |
| Print Speed | ≤90 seconds per case (including curing) |
| Color Accuracy | ΔE ≤2 (sRGB) |
| Case Capacity | 68 slots / ~1,025 cases |
| Operating Environment | 5°C–40°C, 20%–70% RH, ≤55 dB(A) |
| Payment System | Card payment / Bill / Coin / QR |
🌍 Trusted in 50+ Countries
From Europe to the Americas and across Asia-Pacific, operators use the WM880 as a daily-revenue corner store. The same machine that ships to Germany ships to Brazil — multi-language UI, local payment options, and the case library tuned to each market.

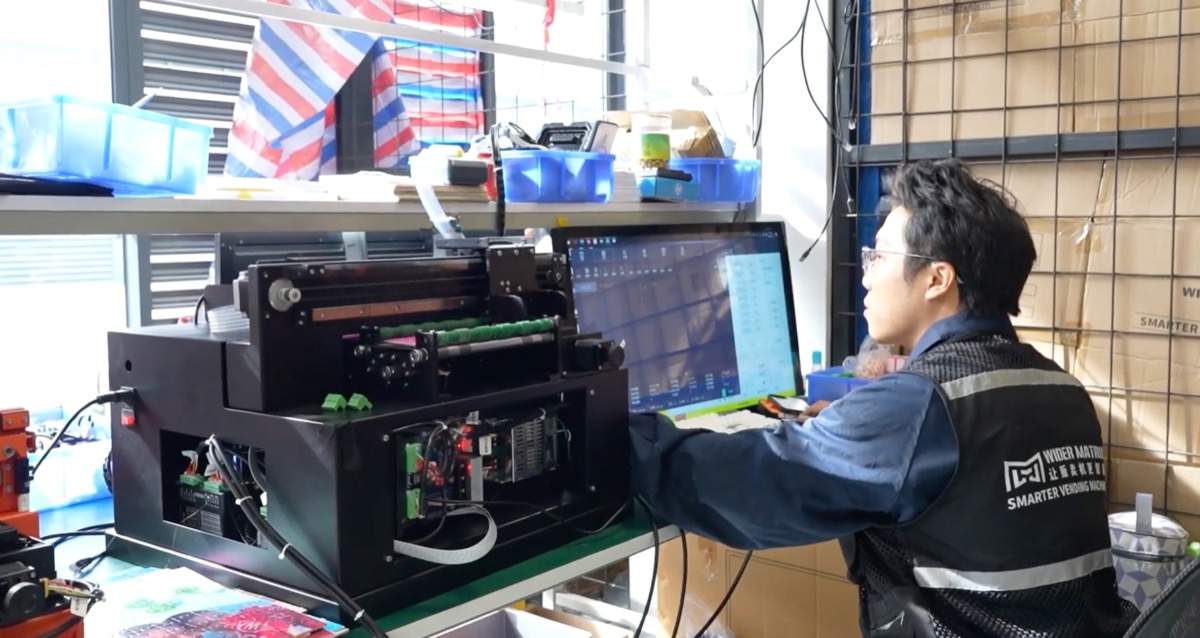

🏭 Built In-House, Not Bought Off-The-Shelf
Most phone-case vending machines on the market are assembled from the same off-the-shelf printing modules bought from third-party suppliers. When an operator asks for a change — a new phone model, a local payment method, a tweaked workflow — those resellers simply can’t modify the core.
The WM880 is different. Wider Matrix designs and develops its own printing system in-house. The software, the case library, the payment stack and the workflow can all be adjusted to fit your market and your customers. You are not locked into someone else’s fixed blueprint — if you need it changed, we can change it. That same in-house control is what powers the WM880’s AI auto-recognition of phone models and stock — a job competitors still do by hand.
✨ Key Features at a Glance
🖨️ Industrial UV Printhead
Epson UV printhead — configurable with the i1600, F1080, or i3200 with industrial-grade UV flatbed printing — 1200×1200 dpi, ΔE≤2 color accuracy, scratch- and waterproof output.
📺 Live Large-Screen Preview
Customers see their design on a big screen and watch the case print in real time. “What you see is what you get” — no surprises at pickup.
🔄 Quick-Swap Cartridge
68 slots holding ~1,025 cases. Swap a cartridge in seconds instead of loading cases one by one — more uptime, fewer site visits.
☁️ Cloud Management
A backend dashboard shows live sales, inventory levels and machine status from anywhere, on any device. Run a fleet without leaving your desk.
🛠️ 24/7 After-Sales Service
our engineers respond around the clock and ship genuine spare parts fast, keeping your WM880 earning with minimal downtime wherever you operate.
🌐 Full-Language UI
The interface speaks your market. Full-language support means travelers and locals alike can design with zero friction.
🧭 How Customers Use It — 6 Steps
📱 Pick the model
Choose the phone brand and model from the on-screen library — covers nearly all popular models.
📤 Upload or scan
Scan a QR code to send a photo, or plug in a USB. The image lands on the big screen.
✨ Customize
Add text, reposition the artwork, or adjust the layout until it looks right.
👁️ Preview
Review the final design on the large screen — exactly what will be printed.
💳 Pay
Cashless card, cash acceptor or coin — whichever fits your location.
🖨️ Print & collect
UV printing finishes in ≤90 seconds including curing. The case drops into the pickup slot.
🤖 High capacity, one-click AI for fast inventory identification.

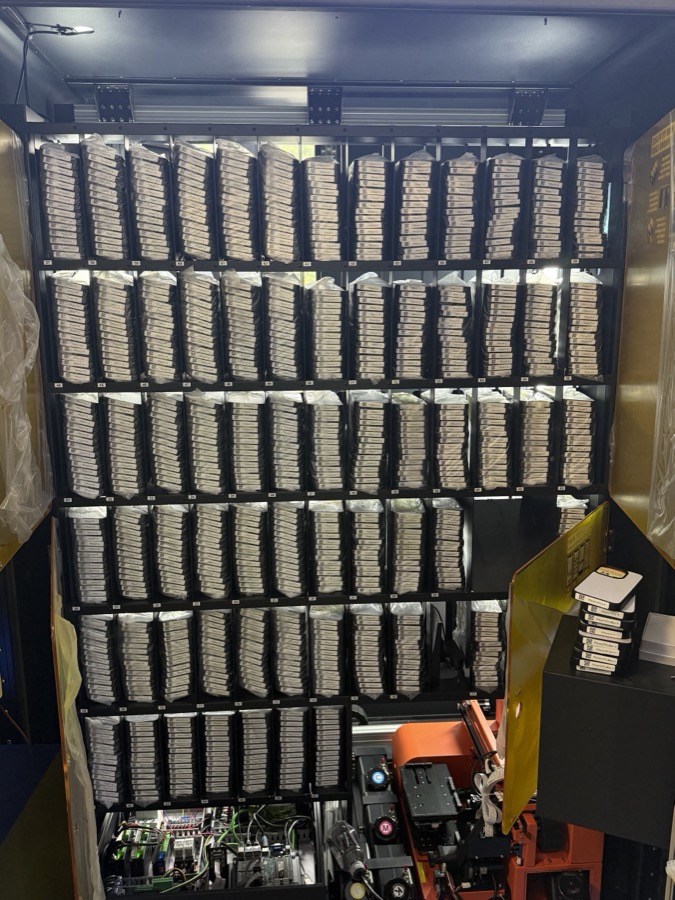

Stockouts kill revenue. The WM880 holds 68 slots / about 1,025 cases.
Other machines make the operator type every phone model and case quantity by hand. Stock the wrong model and you lose a sale; audit a full machine and it can take about two hours. The WM880 does it for you: its built-in AI automatically identifies the phone model, counts the on-hand cases and tracks stock across all 68 slots. What used to be a two-hour manual count is now a few minutes — fewer errors, less labour, more selling time. This is real AI working behind the scenes, not photo-editing gimmicks.

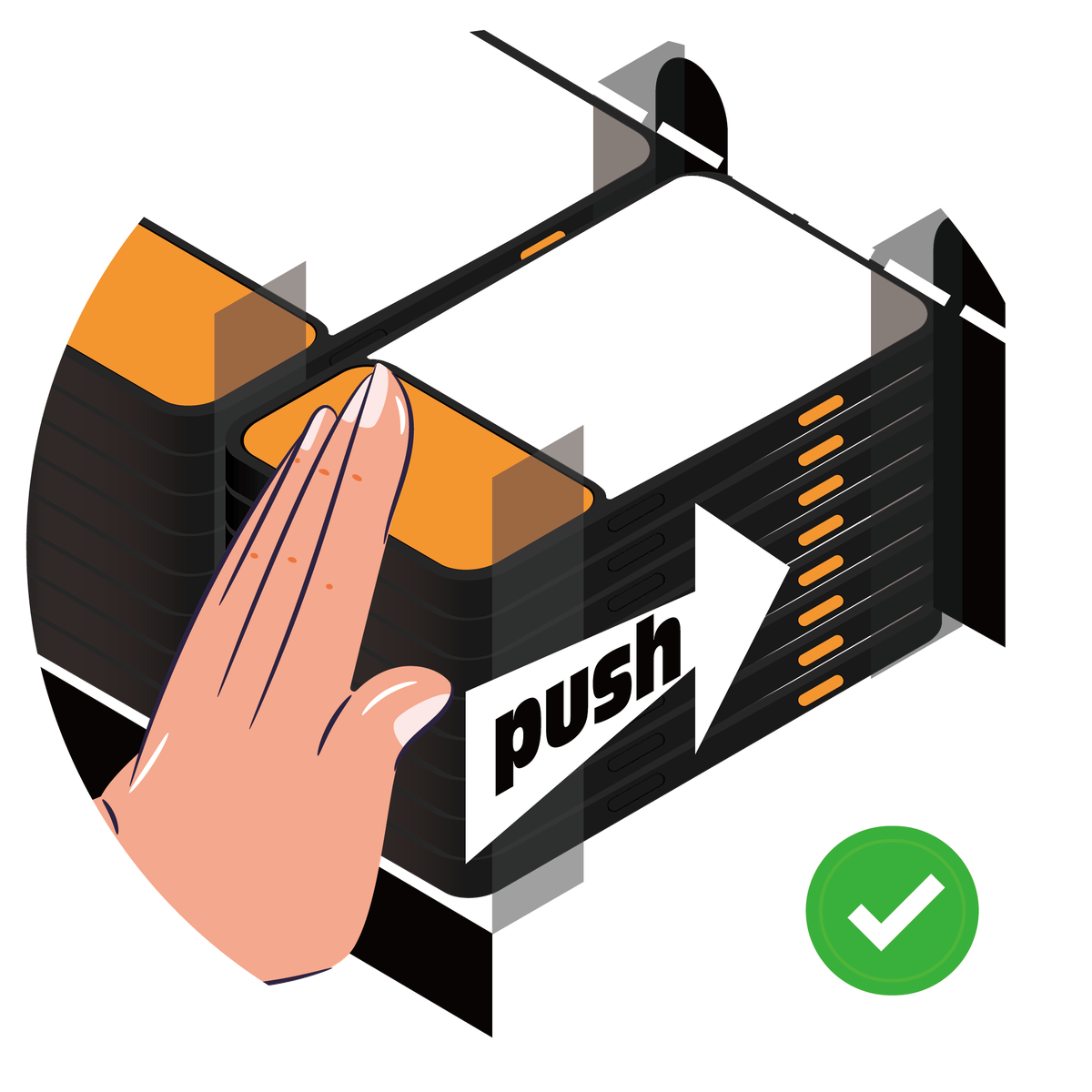

Push the cartridge to refill in minutes

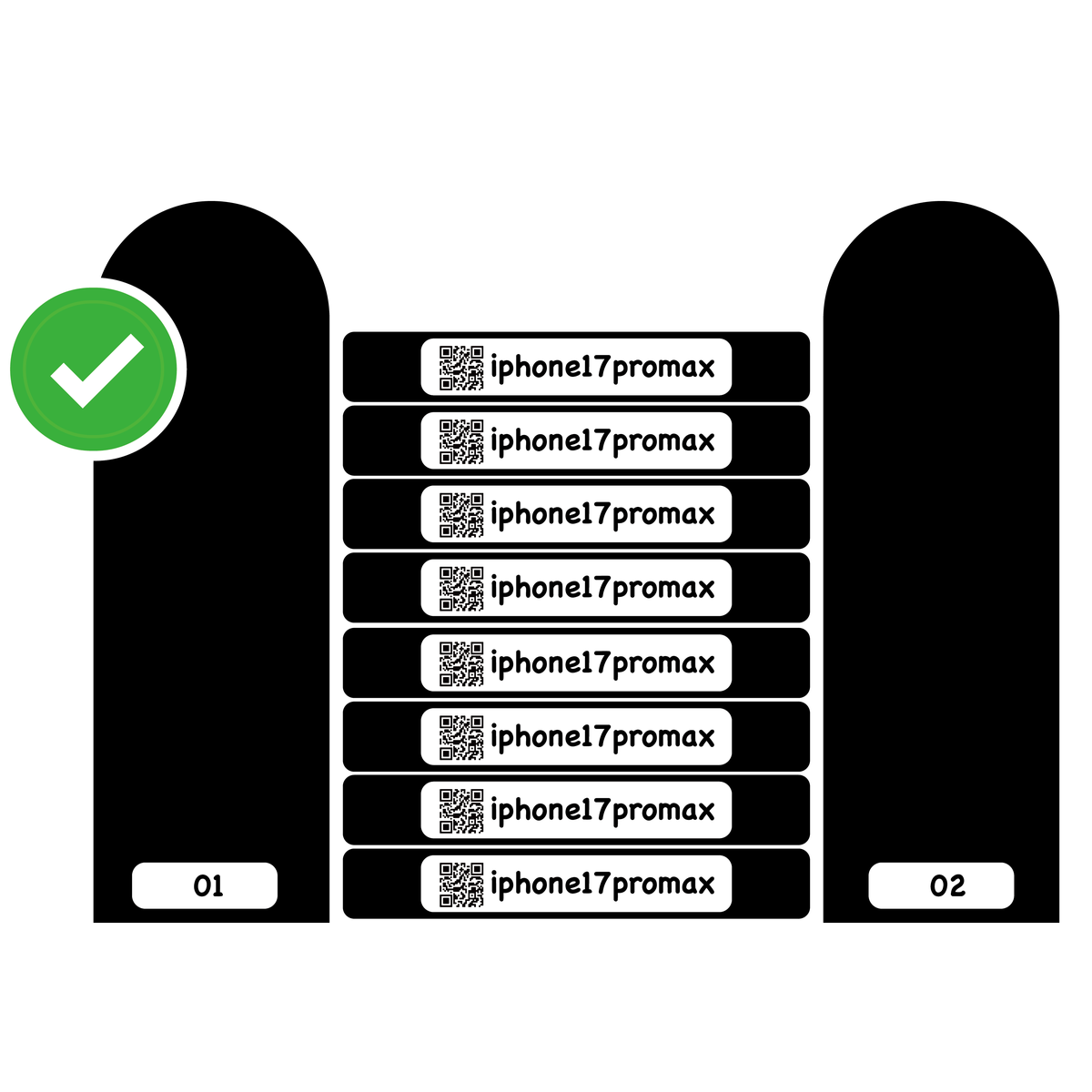

Each slot labeled by phone model

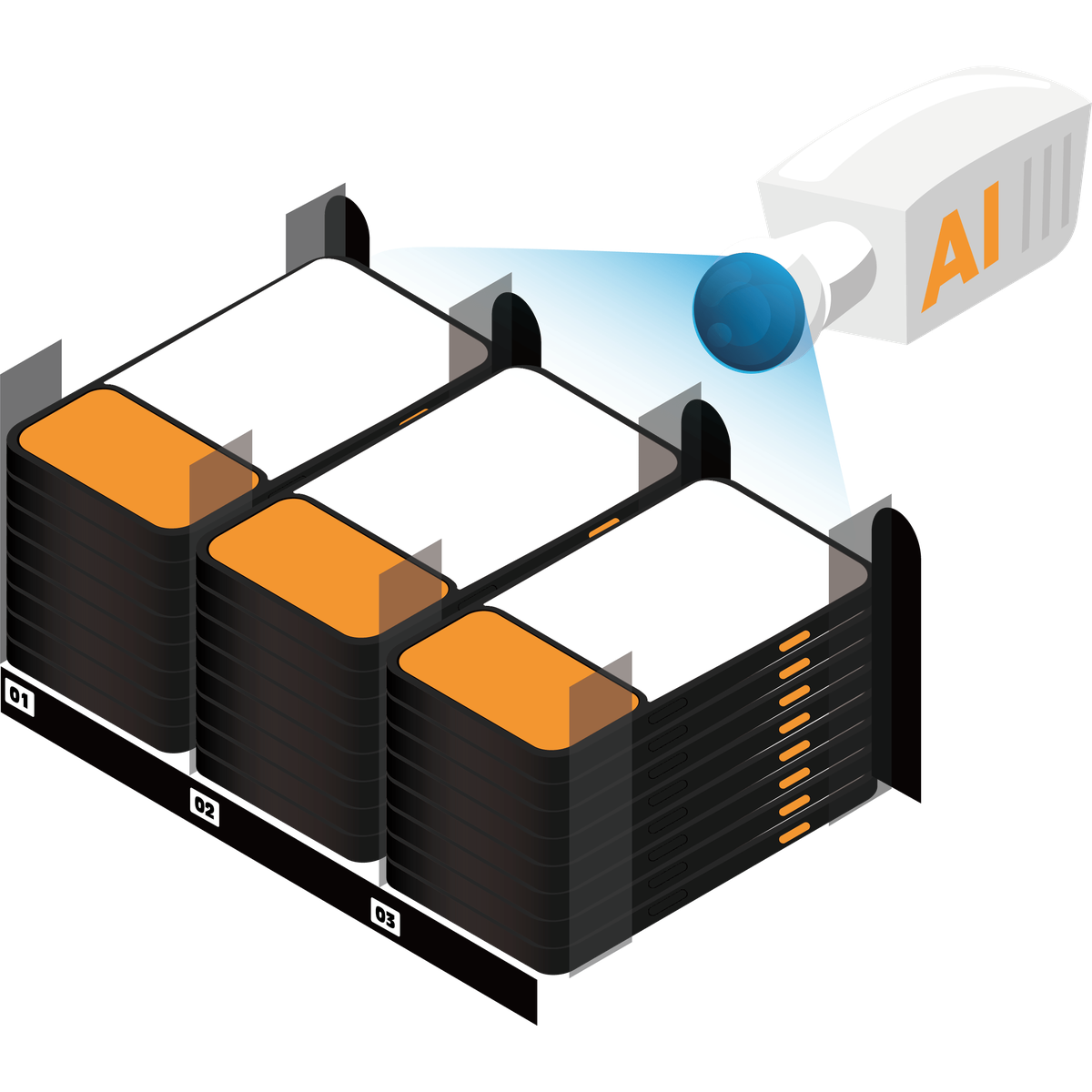

AI camera counts stock automatically

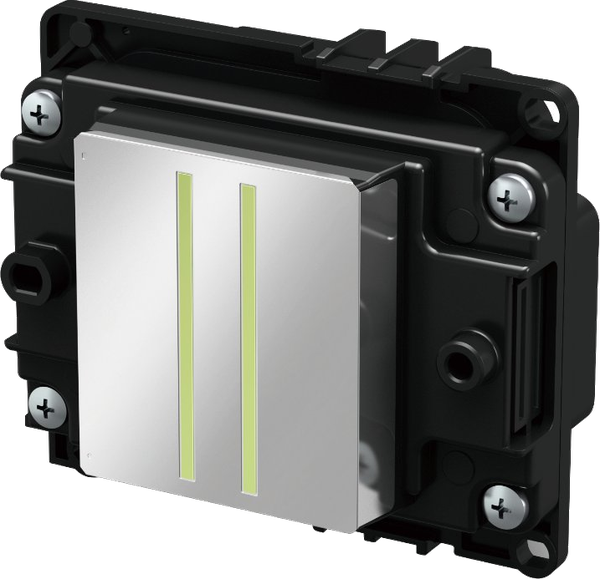

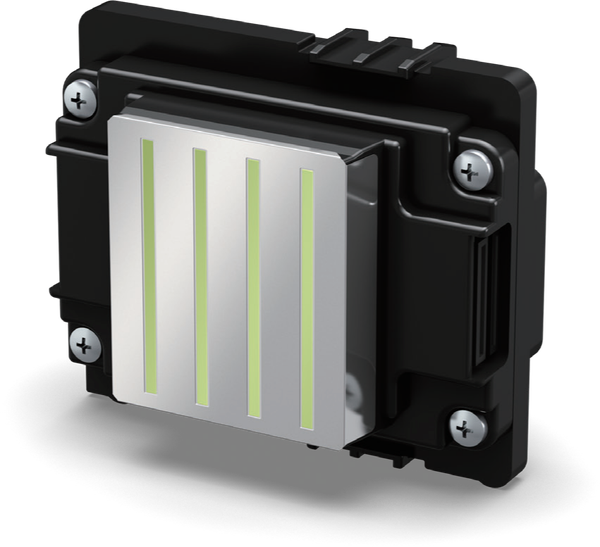

🖨️ The Printhead: Epson F1080 / i1600 / I3200 + UV
At the heart of the WM880 is an industrial-grade Epson UV printhead — configurable with the F1080, i1600, or I3200 running direct UV flatbed printing. Pick the head that fits your volume and budget:
| Parameter | F1080 |
i1600 |
I3200 |
|---|---|---|---|
| Positioning | Entry-level | Best value | Performance |
| Print time | 3 min | 2 min | 1.5 min |
| Nozzles / Resolution | 360 dpi | 1200 dpi | 1200 dpi |
| Printhead lifespan | 8 months | 15 months | 18 months |
| Print technology | UV printing | ||
The machine is equipped with an automatic nozzle cleaning function to prevent nozzle clogging and extend nozzle lifespan.

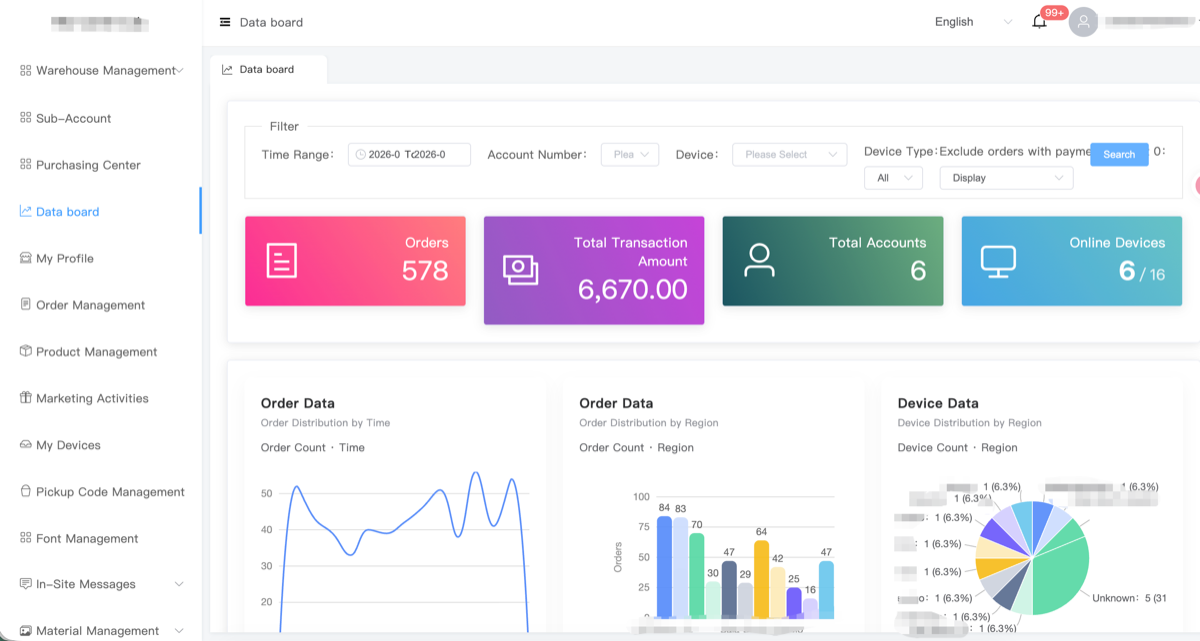

☁️ Cloud Management
Run one machine or fifty from a single dashboard. The cloud backend reports real-time sales, inventory levels and machine status, and supports remote updates. Know which location needs a refill before the customer ever finds an empty slot.
🧩 Consumables
| Case type | Indicative unit cost |
|---|---|
| Normal phone case | US$1.50 |
| Magnetic phone case | US$2.50 |
Compatible with 0.8–1.5 mm hard and soft cases. Eco-friendly imported UV ink keeps prints vivid and durable through daily use. (Indicative costs — confirm with your quote.)
🏷️ OEM / ODM — Built to Your Brand
Because the system is ours to modify, branding is straightforward. We can apply your logo and colors to the machine wrap and LED lightbox, tune the case library to your region, integrate the payment methods your market uses, and adjust the workflow to how you operate. A vending machine that looks and behaves like your business, not a generic box.
🛡️ Warranty & Certifications
Every WM880 ships with a 1-year warranty and meets CE and RoHS requirements. Built, supported and backed by Wider Matrix.
💬 Frequently Asked Questions
A self-service kiosk that lets customers design and UV-print a custom phone case on the spot — no staff required.
About 90 seconds including curing, from payment to a finished case in the pickup slot.
Nearly all popular models on the market are covered. Tell us your target region and we tune the library accordingly.
Nayax cashless card terminal, ITL cash acceptor, and a coin system — mix and match to your location.
It holds 68 slots / about 1,025 cases and uses a quick-swap cartridge, so refills take minutes rather than hand-loading cases one by one.
Yes. The cloud backend shows live sales, inventory and status from any device, anywhere.
Yes. Wider Matrix develops the printing system in-house, so we can adapt the software, case library, payments and workflow to your needs — something off-the-shelf resellers can’t do.
A 1-year warranty, with CE and RoHS compliance.
With no staffing and low consumable cost (about US$1.50–2.50 per case), margins are healthy. Many operators recover the machine from daily foot-traffic sales.
Yes. Its built-in AI automatically identifies each phone model, counts the on-hand cases and tracks stock across all 68 slots — no manual entry. What takes competitors about two hours of manual counting takes a few minutes on the WM880.
Get a Quote & Talk to Wider Matrix
Recommended Locations
Shopping malls, movie theaters, pedestrian streets, supermarket entrances, mobile business halls, large communities, and areas near universities.
